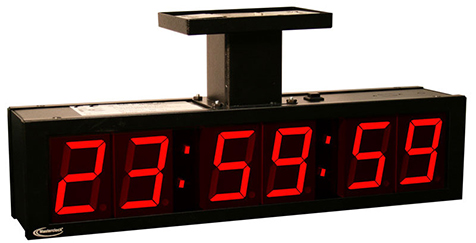

TCDS26-DF (Double faced) - Time Code Driven Clock
TCDS26-DF (Double faced) - Time Code Driven Clock

Available led colors:

Standard Features
- 5.68 cm 6-digit LEDs available in red, green, blue, amber or white
- Syncs to IRIG B, SMPTE 12M, 309M, 24/25/30 fps (non drop frame formats only)
- Retains time and date during loss of power and/or reference using a battery backed real-time clock (RTC) chip and maintenance-free rechargeable battery
- Configures to time zone and daylight saving time parameters
- WinDiscovery software utility included - provides easy configuration of clocks
- Configuration is saved to non-volatile memory and survives power losses
- Password protection prevents unauthorized clock configuration tampering
- Display time in 12- or 24-hr format – hh:mm:ss
- Display date – mm:dd:yy, dd:mm:yy or yy:mm:dd
- Configurable to alternate showing date and time automatically
- Custom colors and logos available (special orders)
- Adjustable brightness levels
- Visibility: 30 meters
- Dry contact relay option
- PM indicator

- Side wall-mount bracket
- RC600

- Choice of – IEC AC or DC (24 VDC)
- International IEC AC 90-240v, 50/60 Hz
- Power consumption < 15W

- Black powder-coated steel chassis
- Size: 38.7w x 18h x 9d cm
- Weight: 2.72 kg

Operating Parameters
- Temperature: 0 to 60°C
- Humidity: Up to 90% (non-condensing)

- BNC female
- 3-pin terminal block
- USB for configuration
- DC input - 2.1 mm female
- IEC Stnd A/C Power

- 5-year limited parts and labor warranty

- FCC, CE Marked, ROHS, ANSI
