Standard Features
- Generates SMPTE, EBU or IRIG-B time codes
- Synchronizes to GPS satellites
- -11.5 to +12 hour time zone offsets in 30-minute increments
- NMEA/Kinemetrics/Truetime serial protocol output
- Wide DC power supply input range: 12 to 48 VDC
- Switch-selectable time zone and DST
- Switch selectable format and baud rate

Time Reference Accuracy
- SMPTE output accuracy of ± 20 microseconds
- IRIG-B0 (DCLS/PWM) output accuracy of ± 90 microseconds
- IRIG-B1 (AM) output accuracy of ± 1.4 milliseconds
- PPS output accuracy of ± 60 nanoseconds

Holdover Accuracy
- With loss of power, device reverts to an internal battery-backed real-time clock chip with accuracy of ± 1min/year or < 165ms per day

Physical
- Size: 10.32w x 3.65h x 13.8d cm
- Weight: 362.9g

Outputs
- SMPTE 30, 25, 24fps (non drop frame only)
- IRIG-B0 (DCLS/PWM): unmodulated, single ended - 5 V
- IRIG-B1 (AM): 1 kHz modulated, level - 5 Vpp
- Date encoded references (IRIG 1344 and SMPTE Leitch date format or 309M)
- PPS
-5 V-TTL
-Pulse width configurable via switch from ~200 ms to ~1 ms
- Serial output via RS-232/RS-485
-NMEA/Kinemetrics/Truetime protocol

Power
- DC input (12-48 VDC)
- 12 VDC external wall mount supplied (UL, CE listed)

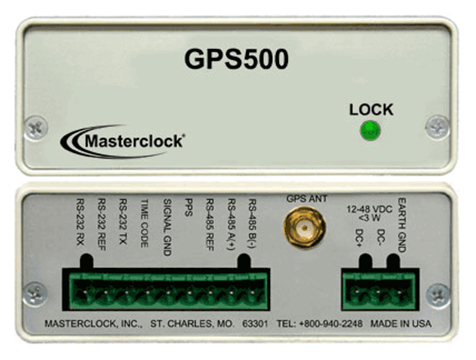

Connectors
- Output: 9-pin removable terminal block
- Power plug: 3-pin removable terminal block
- Antenna: SMA female

Antenna Options
- Basic antenna package includes magnetic GPS antenna and 5 m of cable
- Standard antenna package includes outdoor GPS antenna, mounting kit, and 15 m of cable

Operating Parameters
- Temperature: 0 to 60°C
- Humidity: Up to 90% (non-condensing)

Warranty
- 5-year limited parts and labor warranty

Compliance
- FCC, CE Marked, ROHS, ANSI

Rack mountable with RM4
