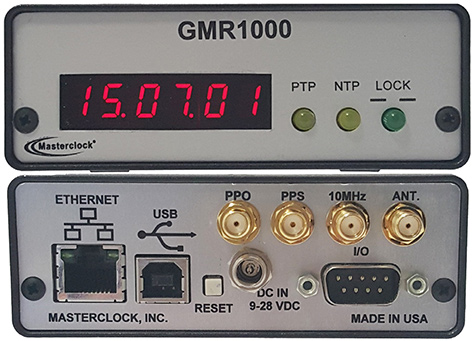

GMR1000 - Multi-Functional Master Clocks
GMR1000 - Multi-Functional Master Clocks
The GMR1000 is a compact time and frequency generator/server that can reference a variety of timing sources and provide a range of outputs to meet customer needs. The base model includes both NTP client and server functionality compatible within IPv4/IPv6 networks and offering Secure-Socket-Host (SSH) encrpyption for secure communications. Properly configured and using standard NTP polling rates, the device can support and synchronize hundreds of thousands of NTP clients.
Standard Inputs
- NTP client via RJ45 10/100 Mb Ethernet
- NMEA 0183 via RS232/422 or USB
- NENA format 0,1,8 via RS232/422 or USB
- Internal high-stability TCXO oscillator ± 3 sec./year
- Configuration via USB or Ethernet
Standard Outputs
- NTP server with 10/100 Mb Ethernet
- NMEA 0183 via RS232/422 or USB
- NENA format 0,1,8 via RS232/422 or USB
Input Options
- GPS or GPS/GLONASS receiver: Basic , Standard , High Gain
- Time codes: IRIG-B0 (DCLS), IRIG-B1 (AM), IRIG-A0 (DCLS), IRIG-A1 (AM), IRIG-E0 (DCLS), IRIG-E1 (AM), SMPTE 12M, 309M, 24/25/30 fps
and 29.97 drop frame
- Internal high-stability OCXO oscillator ± 0.25 sec/year
- VITC input
- Synchronizing signals: PPS, PPM, PPH
- IEEE 1588 Precision Time Protocol
Output Options
- Time codes: IRIG-B0 (DCLS), IRIG-B1 (AM), IRIG-A0 (DCLS), IRIG-A1 (AM), IRIG-E0 (DCLS), IRIG-E1 (AM), SMPTE 12M, 309M, 24/25/30 fps and 29.97 drop frame
- 5V at 20mA Pulse Per Second (PPS)
- Optical Fiber LAN
- Programmable Pulse Output (PPO)
- 10MHz sine wave
- IEEE 1588 Precision Time Protocol
Power, Physical Dimensions, Operating Parameters
- DC input (9-28 VDC)
- Includes external 12 VDC wall mount power supply with locking DC plug
- Size: 16.35 x 10.32 x 3.65 cm, Weight: 453.6 g
- Temperature: 0 to 60°C
- Humidity: Up to 90% (non-condensing)
Other Features
- Internal TXCO maintains time during loss of external sync within ± 3 seconds/year
- WinDiscovery configuration software included
- Fully configurable offsets for time zone and DST
- Programmable relay closure - one event per day with NO/NC dry contact relay
- Relay alerts loss of sync by default
- Telnet/SSH communication
- SNMP with custom MIB
- IPv4/IPv6 compatible
Other Options
- DB9 breakout adapter
- Six-digit display
- DIN rail mount available
Compliance
- FCC, CE Marked, ROHS, ANSI
Warranty
- 5-year limited parts and labor warranty
