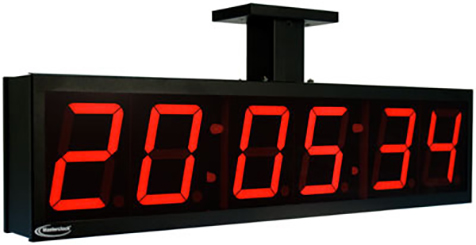

NTDS46-DF (Double faced) - NTP Driven Clock
NTDS46-DF (Double faced) - NTP Driven Clock

Available led colors:


Standard Features
- 10.2 cm 6-digit LED display available in red, green, blue, amber or white
- Syncs to any NTP source for accurate traceable time
- Retains time and date during loss of power and/or reference using a battery backed real-time clock (RTC) chip and maintenance-free rechargeable battery
- Configures to time zone and daylight saving time parameters
- WinDiscovery software utility included - provides easy configuration of clocks and generators attached to network
- Fully configurable network settings, including DHCP/BOOTP/STATIC IP
- Configuration is saved to non-volatile memory and survives power losses
- Password protection prevents unauthorized clock configuration tampering
- Display time in 12- or 24-hr format – hh:mm:ss
- Display date – mm:dd:yy, dd:mm:yy or yy:mm:dd – configurable
- Configurable to alternate showing date and time automatically
- Adjustable brightness levels
- Wall-mount bracket
- Visibility: 60 meters
- Dry contact relay option
- PM indicator

Physical
- Black powder-coated steel chassis
- Size: 63.3w x 17.4h x 8.4d cm
- Weight: 5.1 kg

Operating Parameters
- Temperature: 0 to 60°C
- Humidity: Up to 90% (non-condensing)

Power
- Choice of – IEC AC, POE (Power over Ethernet IEEE802.3af) or DC (24 VDC)
- International IEC AC 90-240v, 50/60 Hz
- Power consumption: < 15W

Connectors
- Ethernet RJ45
- DC input
- IEC AC Power
- USB for configuration

Compliance
- FCC, CE Marked, ROHS, ANSI

Optional
- Side wall-mount bracket
- Stainless steel case (below)
- The RC600 (below) is a remote control that adds both count-down and count-up timer control features

Warranty
- 5-year limited parts and labor warranty
