Standard Features

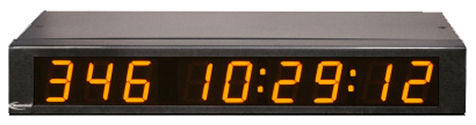

- 2.5 cm 9-digit LED display colors available in red, green, blue or amber
- Syncs to any NTP source for accurate traceable time
- Retains time and date during loss of power and/or reference using a battery backed real-time clock (RTC) chip and maintenance-free rechargeable battery
- Configures to time zone and daylight saving time parameters
- WinDiscovery software utility included - provides easy configuration of clocks and generators attached to network
- Fully configurable network settings, including DHCP/BOOTP/STATIC IP
- Configuration is saved to non-volatile memory and survives power losses
- Password protection prevents unauthorized clock configuration tampering
- Display time in 12- or 24-hr format – hh:mm:ss
- Display date – mm:dd:yy, dd:mm:yy or yy:mm:dd
- Configurable to alternate showing date and time automatically
- Adjustable brightness levels
- Visibility: 15 meters
- Dry contact relay option
- PM indicator

Physical
- Black powder-coated steel chassis
- Surface mount (desktop version) - Size: 27.2w x 4.31h x 8.9d cm - Weight: 0.45 kg
- Rack-mount - Size: 43w x 4.31h x 8.9d cm - Weight: 0.78 kg

Operating Parameters
- Temperature: 0 to 60°C
- Humidity: Up to 90% (non-condensing)

Power
- Choice of – IEC AC, POE (Power over Ethernet IEEE802.3af) or DC (24 VDC)
- International IEC AC 90-240v, 50/60 Hz
- Power consumption: < 15W

Connectors
- Ethernet RJ45
- DC input
- IEC C5 A/C Power
- USB for configuration

Compliance
- FCC, CE Marked, ROHS, ANSI

Optional
- Surface mount (desktop version)
- Rack mount (NTDS19-RM)
- The RC600 (below) is a remote control that adds both count-down and count-up timer control features

Warranty
- 5-year limited parts and labor warranty
